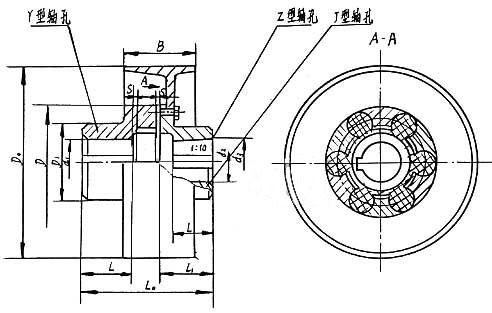

MLL-I(LMZ-I)型分体式制动轮梅花形弹性联轴器的参数及主要尺寸：(GB/T 5272-85) mm
|
型号
|
公称转矩
Tn
N.m
|
轴孔直径
d1,d2,dz
|
轴孔长度
|
L0
|
D0
|
B
|
D
|
弹性件
型号
|
质量
kg
|
|
|
Y
|
Z,J
|
|||||||||
|
L、L1
|
||||||||||
|
MLL4-I-160
|
140-400
|
25-42
|
62-112
|
44-84
|
151-251
|
160
|
70
|
105
|
MT4
|
8.5
|
|
MLL4-I-200
|
200
|
80
|
9.5
|
|||||||
|
MLL5-I-200
|
250-800
|
30-48
|
82-112
|
60-84
|
197-257
|
200
|
85
|
125
|
MT5
|
13.8
|
|
MLL6-I-200
|
400-1120
|
35-55
|
82-112
|
60-84
|
203-263
|
200
|
85
|
145
|
MT6
|
16.7
|
|
MLL6-I-250
|
250
|
105
|
21.7
|
|||||||
|
MLL6-I-250
|
710-2240
|
45-65
|
112-142
|
84-107
|
265-325
|
250
|
105
|
170
|
MT7
|
26.3
|
|
MLL7-I-250
|
315
|
135
|
34.7
|
|||||||
|
MLL8-I-315
|
1120-3550
|
50-75
|
112-142
|
84-107
|
272-332
|
315
|
135
|
200
|
MT8
|
47.3
|
|
MLL8-I-400
|
400
|
170
|
61.3
|
|||||||
|
MLL9-I-400
|
1800-5600
|
60-95
|
142-172
|
107-132
|
334-394
|
400
|
170
|
230
|
MT9
|
84.0
|
|
MLL9-I-500
|
500
|
210
|
108
|
|||||||
|
MLL10-I-500
|
2800-9000
|
70-110
|
142-212
|
107-167
|
334-484
|
500
|
210
|
260
|
MT10
|
132
|
|
MLL11-I-630
|
4000-12500
|
80-120
|
172-212
|
132-167
|
411-491
|
630
|
265
|
300
|
MT11
|
197
|
|
MLL12-I-710
|
7100-20000
|
90-130
|
172-252
|
132-202
|
417-577
|
710
|
300
|
360
|
MT12
|
212
|
|
MLL13-I-800
|
8000-25000
|
100-140
|
212-252
|
167-202
|
497-577
|
800
|
340
|
400
|
MT13
|
294
|
