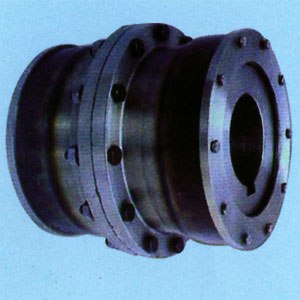

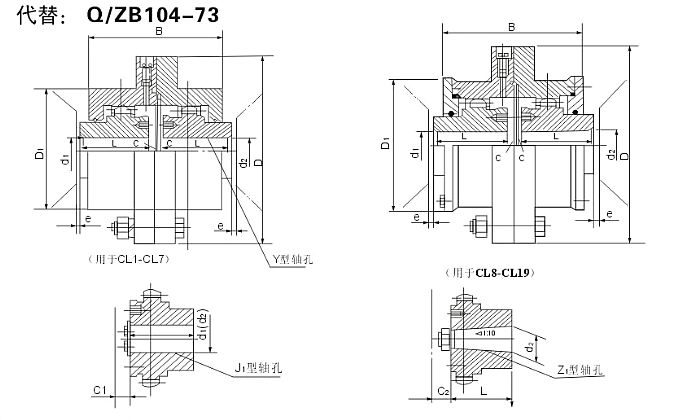

CL型齿式联轴器的参数及主要尺寸：(JB/ZQ 4218-86) mm
|
型号
|
公称转距
Tn
N.m
|
轴孔直径
|
轴孔长度
|
D
|
D1
|
B
|
C
|
质量
kg |
|
Y，J1，Z1
|
||||||||
|
d1,d2,d3
|
L
|
|||||||
|
CL1
|
710
|
18,19
|
30,42
|
170
|
110
|
106
|
16.0
|
7.8
|
|
20,22,24
|
38,52
|
6.0
|
||||||
|
25,28
|
44,62
|
2.5
|
||||||
|
30-40
|
60-112
|
|||||||
|
CL2
|
1400
|
30,32,35,38
|
82,60
|
185
|
125
|
134
|
2.5
|
12.5
|
|
40-50
|
84-112
|
|||||||
|
CL3
|
3150
|
40-56
|
112,84
|
220
|
150
|
170
|
2.5
|
26.9
|
|
60
|
142,107
|
|||||||
|
CL4
|
5600
|
45-56
|
112,84
|
250
|
175
|
200
|
2.5
|
34.9
|
|
60-75
|
142,107
|
|||||||
|
CL5
|
8000
|
50-90
|
84-172
|
290
|
200
|
220
|
5.0
|
55.8
|
|
CL6
|
11200
|
60-110
|
107-212
|
320
|
230
|
246
|
5.0
|
79.9
|
|
CL7
|
18000
|
65-75
|
142,107
|
350
|
260
|
286
|
5.0
|
109.5
|
|
80-120
|
132-172
|
|||||||
|
CL8
|
22400
|
80-95
|
172,132
|
380
|
315
|
325
|
5.0
|
133.8
|
|
100-140
|
167-252
|
|||||||
|
CL9
|
28000
|
90,95
|
172,132
|
430
|
365
|
335
|
5.0
|
171.0
|
|
100-160
|
167-302
|
|||||||
|
CL10
|
50000
|
110-180
|
167-302
|
490
|
420
|
365
|
5.0
|
275.8
|
|
CL11
|
71000
|
120,125
|
212,167
|
545
|
470
|
405
|
5.0
|
385.0
|
|
130-220
|
202-352
|
|||||||
|
CL12
|
100000
|
140,150
|
252,202
|
590
|
520
|
485
|
5.0
|
540.0
|
|
160-250
|
242-410
|
|||||||
|
CL13
|
140000
|
160-280
|
242-470
|
680
|
590
|
524
|
7.5
|
798.3
|
|
CL14
|
200000
|
180-320
|
242-470
|
730
|
650
|
565
|
7.5
|
976.6
|
|
CL15
|
250000
|
220-360
|
282-550
|
780
|
700
|
644
|
7.5
|
1182.5
|
|
CL16
|
335000
|
240-400
|
330-650
|
900
|
785
|
720
|
10.0
|
1936.0
|
|
CL17
|
560000
|
260-450
|
330-650
|
1000
|
885
|
800
|
10.0
|
2700.0
|
|
CL18
|
710000
|
300-500
|
380-650
|
1100
|
990
|
900
|
10.0
|
3669.0
|
|
CL19
|
1000000
|
360-560
|
450-800
|
1250
|
1090
|
910
|
15.0
|
5138.0
|
