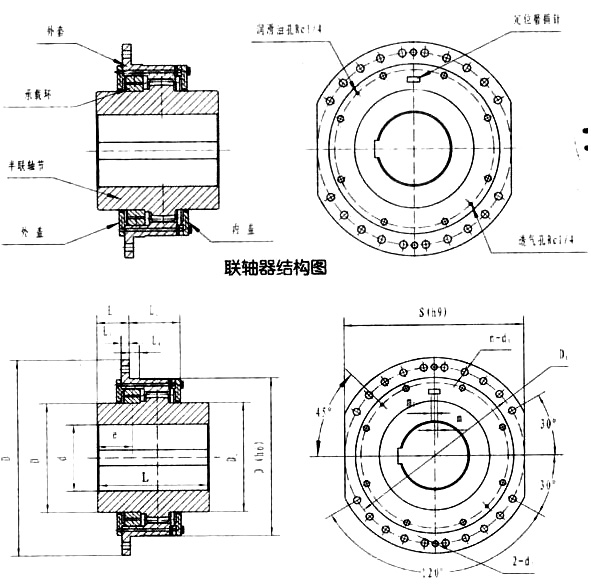

DC系列卷筒用鼓形齿式联轴器主要参数及尺寸: mm
|
型号
|
许用
转速
|
公称
转矩
|
径向
载荷
|
轴孔
|
外形尺寸
|
卷筒联结尺寸
|
磨损
刻度
|
轴向
间隙
|
载荷
位置
|
转动惯量
|
质量
|
|||||||||||||||
|
直径
|
长度
|
|||||||||||||||||||||||||
|
nmax
|
Tmax
|
Frmax
|
dmax
(H7)
|
Lmin
|
D
|
D1
(h6)
|
D2
(h9)
|
L1
|
L2
|
L3
|
L4
|
L5
|
L6
|
S
(h9)
|
φ2
|
n-d2
|
螺栓
|
α
|
d3
|
r
|
m1
|
xmax
|
e
|
I
|
m
|
|
|
r/min
|
Nm
|
N
|
mm
|
mm
|
mm
|
mm
|
kg.m2
|
kg
|
||||||||||||||||||
|
DC01A
DC01B
|
200
|
1600
|
18000
|
110
|
185
|
400
|
280
|
180
|
80
|
85
|
15
20
|
25
|
26
|
11
|
360
|
360
|
10-18
|
M16
|
30
|
M16
|
2.5
|
1.0
|
±2.5
|
88
|
1.0
|
80
|
|
DC02A
DC02B
|
200
|
22400
|
25000
|
125
|
200
|
420
|
310
|
212
|
80
|
95
|
15
20
|
25
|
26
|
11
|
380
|
380
|
10-18
|
M16
|
30
|
M16
|
2.5
|
1.0
|
±2.5
|
88
|
1.5
|
100
|
|
DC03A
DC03B
|
200
|
31500
|
35500
|
150
|
225
|
450
|
340
|
230
|
80
|
105
|
25
|
25
|
34
|
11
|
400
|
400
|
10-22
|
M20
|
30
|
M20
|
2.5
|
1.0
|
±2.5
|
88
|
2.5
|
120
|
|
DC35A
DC35B
|
200
|
45000
|
50000
|
160
|
235
|
510
|
400
|
250
|
95
|
115
|
25
30
|
30
|
34
|
15
|
460
|
460
|
10-22
|
M20
|
30
|
M20
|
2.5
|
1.4
|
±2.5
|
106
|
3.0
|
150
|
|
DC04A
DC04B
|
200
|
63000
|
71000
|
200
|
250
|
550
|
420
|
280
|
95
|
130
|
25
30
|
30
|
34
|
15
|
500
|
500
|
14-22
|
M20
|
20
|
M20
|
2.5
|
1.4
|
±2.5
|
106
|
4.5
|
190
|
|
DC05A
DC05B
|
200
|
90000
|
90000
|
220
|
265
|
580
|
450
|
315
|
95
|
145
|
25
30
|
30
|
34
|
15
|
530
|
530
|
14-22
|
M20
|
20
|
M20
|
2.5
|
1.4
|
±2.5
|
110
|
7.25
|
245
|
|
DC55A
DC55B
|
200
|
125000
|
112000
|
240
|
290
|
620
|
500
|
345
|
101
|
160
|
25
30
|
35
|
35
|
19
|
560
|
560
|
20-22
|
M20
|
13.3
|
M20
|
2.5
|
1.8
|
±2.5
|
110
|
10.3
|
330
|
|
DC06A
DC06B
|
200
|
160000
|
140000
|
260
|
300
|
650
|
530
|
375
|
101
|
170
|
25
30
|
35
|
35
|
19
|
580
|
600
|
20-22
|
M20
|
13.3
|
M20
|
2.5
|
1.8
|
±2.5
|
116
|
15.5
|
385
|
|
DC65A
DC65B
|
200
|
190000
|
165000
|
270
|
300
|
665
|
545
|
387
|
101
|
175
|
25
30
|
35
|
35
|
19
|
590
|
615
|
26-22
|
M20
|
10
|
M20
|
4
|
1.8
|
±2.5
|
116
|
18.3
|
435
|
|
DC07A
DC07B
|
200
|
224000
|
180000
|
280
|
310
|
680
|
560
|
400
|
101
|
180
|
25
30
|
35
|
35
|
19
|
600
|
630
|
26-22
|
M20
|
10
|
M20
|
4
|
1.8
|
±2.5
|
116
|
21.4
|
485
|
|
DC08A
DC08B
|
200
|
315000
|
224000
|
300
|
345
|
720
|
600
|
437
|
111
|
185
|
35
|
43
|
35
|
21
|
640
|
660
|
26-26
|
M24
|
10
|
M24
|
4
|
2.2
|
±2.5
|
118
|
30.6
|
550
|
|
DC09A
DC09B
|
200
|
450000
|
280000
|
340
|
380
|
780
|
670
|
487
|
111
|
200
|
35
|
43
|
35
|
21
|
700
|
730
|
26-26
|
M24
|
10
|
M24
|
4
|
2.2
|
±2.5
|
118
|
40.2
|
650
|
|
DC10A
DC10B
|
200
|
560000
|
355000
|
380
|
420
|
850
|
730
|
545
|
111
|
215
|
35
|
43
|
35
|
21
|
760
|
800
|
26-26
|
M24
|
10
|
M24
|
4
|
2.2
|
±2.5
|
120
|
65.1
|
890
|
